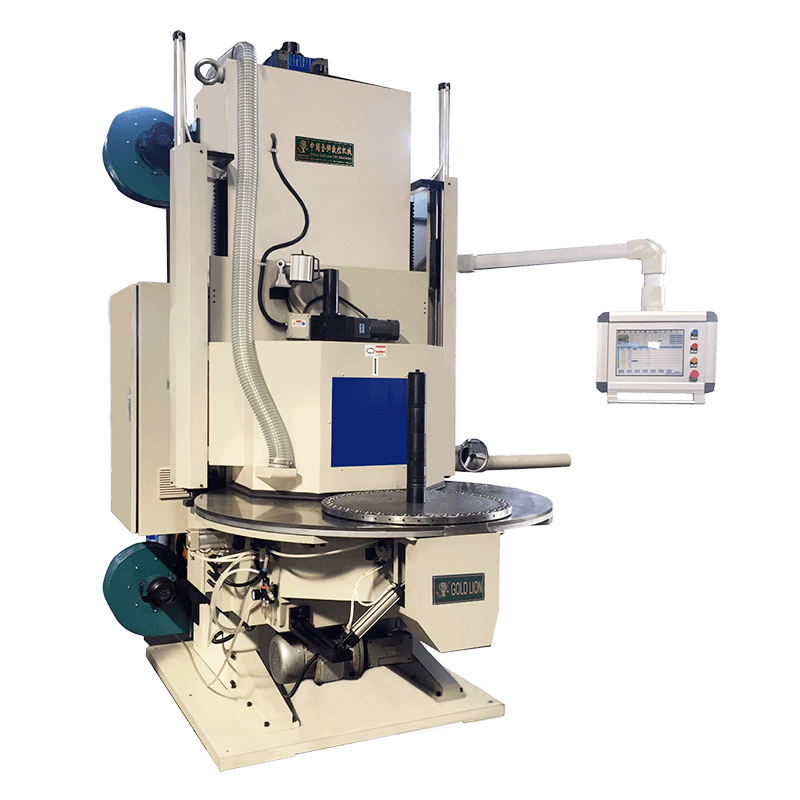

Double Tray(Single Tray)CNC Spring Grinding Machine MK-9

Model: MK-9

Machine Features

 MK-9 new double tray (or single tray) CNC spring grinding machine is adopt to use the clutch to change tray, with Japan's Mitsubishi control system to control grinding process on both vertical ends of springs simultaneously. The grinding head feeds and returns automatically, and the feeding speed will be adjusted automatically depend on different specifications of springs and also have automatic compensation function after grinding wheels wear; the machine can use two grinding methods: manual feed and automatic feed, which is suitable for grinding high precision springs. The main axis motor is external, so its maintenance is convenient; The automatic protective door is safe and reliable.

Contact Us Video
Description

Specifcatio

Model MK-9
Steel wire Diameter Of Grinding Spring 1-9
Diameter Of Grinding Spring ≤100
Hieght Of Grinding Spring 10-300 10-500
Grinding wWheel Size(outside×height) 450x65
N/Min Grinding Head Speed 1430
Machine Size(length ×width ×height) 1550×1980×2550(2800)
Net Weight Of The Machine 2800(3300)
Power Three phase 380V.AC.50Hz
Motor Power(motor 5pcs) 15.68
