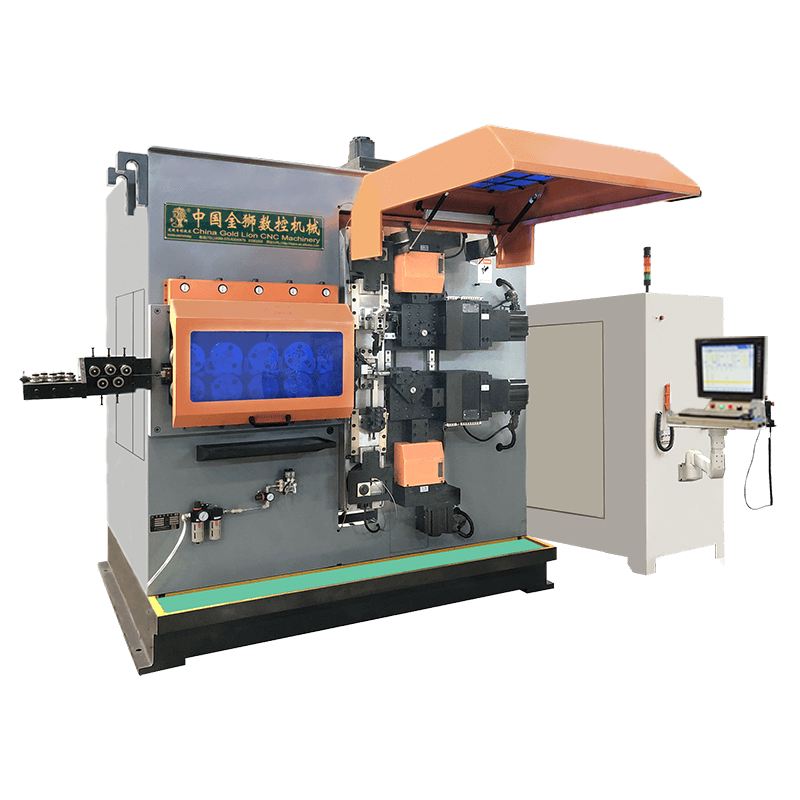

9 axis CNC spring making machine CK990

Model:CK990

The 9-axis CNC spring machine has 9 sets of servo motors. The coiling axis structure is a one-piece structure to achieve perfect and stable horizontal and vertical 2D coil spring movement; by the CNC system directly control the outside diameter of the spring and the diameter, the spring rotation only needs to use the control system to adjust, do not need to change the mechanical coiling axis slider; the up and down movement of the auxiliary core cutter is controlled by the servo motor, which makes the core cutter move with high precision and convenience. Moreover, the auxiliary core cutter and the cutter can be moved together, and the optimal position of the auxiliary core cutter and the cutter can be maintained without adjusting the position of the cutter when changing the outside diameter of the spring; straight cutting, opposite cutting, swing cutting, twisting cutting functions are complete; new workers are easy to learn and understand. the control system matches the remote interconnection network interface, and the software has a graphical automatic programming template, and the system automatically generates a spring after inputting the required value. The program, with a few modifications, completes the spring that needs to be rolled.

Can be equipped with an image detector.

Video

Model	CK990
Servo Axes	9
Wire Diameter	3.0-9.0
Outside Diameter	120
Wire Feed Lergth	Limiless
Wire Feed Speed	70-140
Production Rate	≤120
Left or Right Winding Rate	3
Wire Feed Cam	5
Wire Feed Axis	30
OD knife vertical axis	3.8KWx2
Horizontal axis of outer diameter knife	3.8KWx2
PichAxIs	3.8
Upper Cutting Axis	7
Lower Cutting Axis	7
Lifting shaft of cutting mechanism	2KW
Serro Motor	65
Dimensions	L(mm)	2200
W(mm)	1880
H(mm)	2650
Machine Weight	9800

Model

CK990

Servo Axes

Wire Diameter

3.0-9.0

Outside Diameter

120

Wire Feed Lergth

Limiless

Wire Feed Speed

70-140

Production Rate

≤120

Left or Right Winding Rate

Wire Feed Cam

Wire Feed Axis

OD knife vertical axis

3.8KWx2

Horizontal axis of outer diameter knife

3.8KWx2

PichAxIs

3.8

Upper Cutting Axis

Lower Cutting Axis

Lifting shaft of cutting mechanism

2KW

Serro Motor

Dimensions

L(mm)

2200

W(mm)

1880

H(mm)

2650

Machine Weight

9800

As a famous OEM/ODM 9 axis CNC spring making machine CK990 suppliers and wholesale 9 axis CNC spring making machine CK990 company, Zhejiang Chuangyu Machinery Technology Co., Ltd. is currently a domestic professional manufacturer integrating R&D, production and sales of computer spring machines, a national high-tech enterprise, a drafting unit of the Chinese spring machinery industry standard, and a director unit of the China Spring Professional Association. The models cover more than 40 different types of spring machine equipment between 0.1-25mm, including computer compression spring machines, computer universal spring machines, camless machines, computer spring grinding machines, tempering furnaces, 9 axis CNC spring making machine CK990 and other products. The company has introduced multi-axis technology from Germany and Japan, and has cooperated with universities and research institutes to develop more than 30 patented technologies, continuously improving the degree of automation, and allowing users to make high-precision 9 axis CNC spring making machine CK990 with simple operations as much as possible, even when winding complex springs. One-time forming, no additional processing is required. Its products have the characteristics of fast adjustment, stable and reliable, and simple operation. The company has a number of advanced automated production lines, and the accuracy that can be achieved in the production process is at the first-class level in the industry. Efficient, fast, and orderly modern management, to minimize engineering errors, to ensure the excellent quality of 9 axis CNC spring making machine CK990, and to provide customers with satisfactory services.
At present, our wholesale 9 axis CNC spring making machine CK990 are mainly exported to dozens of countries such as the United States, Russia, South Korea, Turkey, India, Brazil, Mexico, Argentina, Malaysia, Vietnam, South Africa, etc. Many of the cooperative customers are the largest local spring manufacturers. The company will always adhere to customer-centric, pursue the perfect combination of character and technology, and work together to innovate and create brilliance together.
