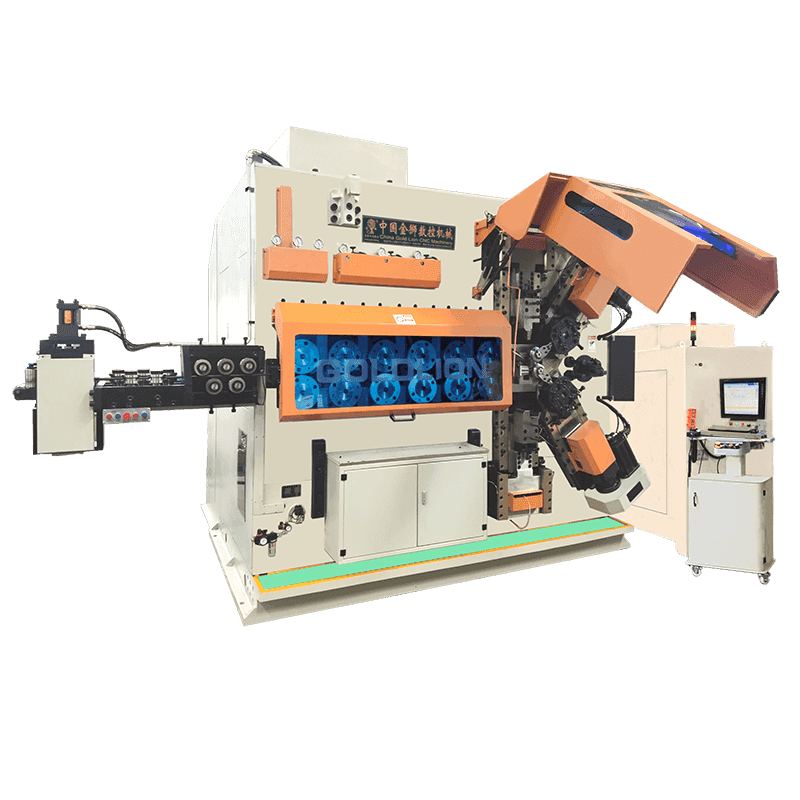

6 axis CNC spring making machine CK6200

Model: CK6200

6 axis CNC spring machine has 6 sets of servo motors, completely abandoned the traditional 5 axis CAM reducing mechanism whose operation is cumbersome, by the CNC system directly control the spring diameter and reducing diameter, new workers easy to learn and easy to understand. When coiling large wire diameter spring, six sets of wire feeding rollers make each wire feeding shaft bear less force, the original shape precision of steel wire is not crushed, enough wire feeding traction to ensure the wire feeding precision; The weight of itself is sufficient, the assist mandrel mechanism adopts the hydraulic locking function, and it is fixed by the hydraulic jacking after lifting, which is easy to operate, with small vibration and high incision precision; Wire bending mechanism will speed up for the first circle of spring bending after change a new wire. The functions of straight cut, subtend cut, swing cut, twist cut are complete; The control system matches the remote Internet interface, and the software has a graphical automatic programming template. After inputting the required value, the system will automatically generate a spring program, and the required coiled spring can be completed by slight modification. The machine can be equipped with imaging measuring instrument.

Contact Us Video
Description

Specifcation

Model
CK6200
CK6180
Servo Axes
6
6
Wire Diameter
10.0-20.0
9-18
Outside Diameter
250
250
Wire Feed Lergth
Limitless
Limitless
Wire Feed Speed
37-100
37-100
Production Rate
≤80
≤85
Left or Right Winding Rate
3
3
wire Feed Cam
6
6
Wire Feed Axis
55
55
DiameterAxis
7×2
5.5×2
Pitch Axis
5.5
5.5
Upper Cutting Axis
30
25
Lower Cutting Axis
30
25
Serro Motor
134.5
121.5
Dimensions L(mm)
4600
4550
w(mm)
2600
2550
H(mm)
3000
2950
Machine Weighing Weight
32000
30000
